Up to 1 Year Standby
Wireless Charging

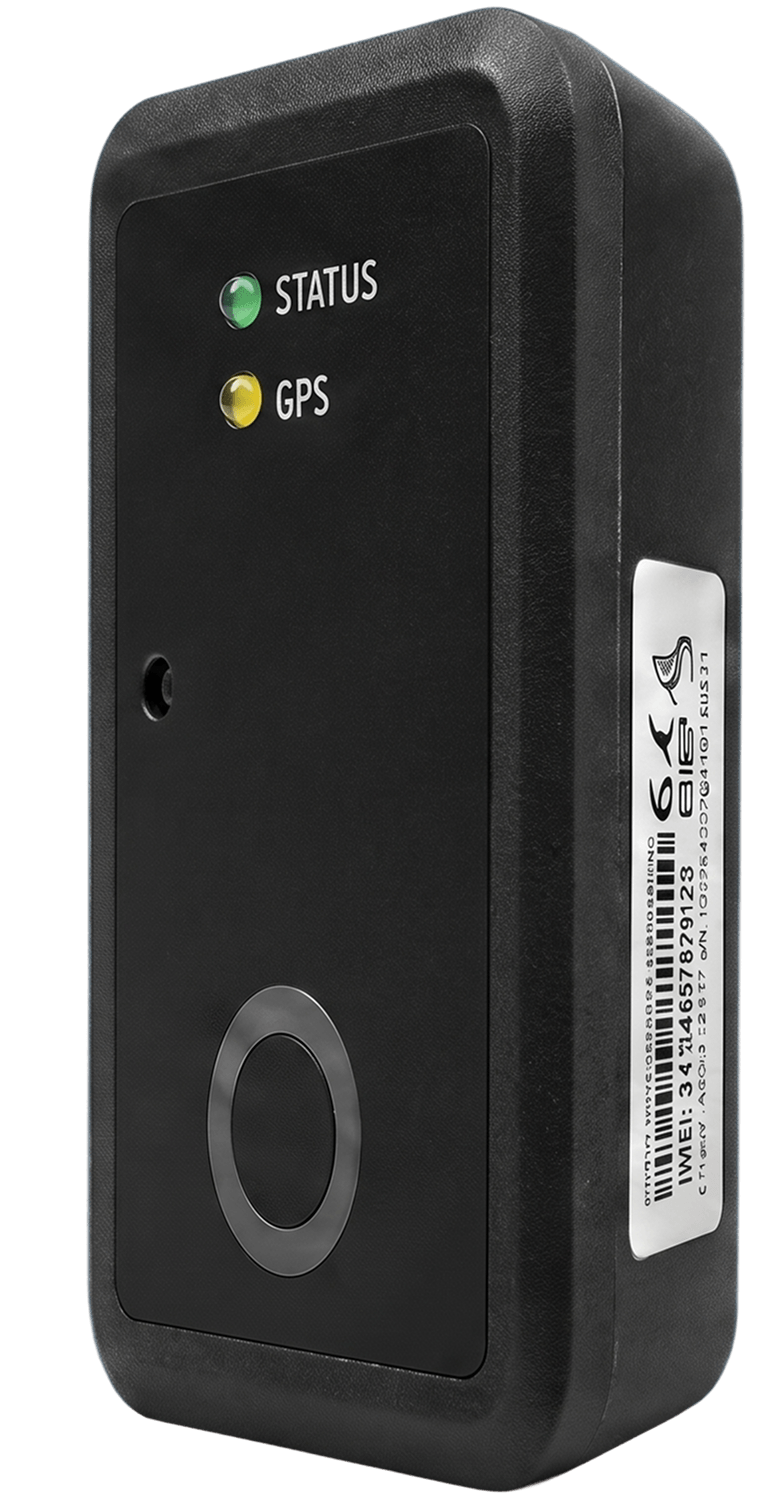

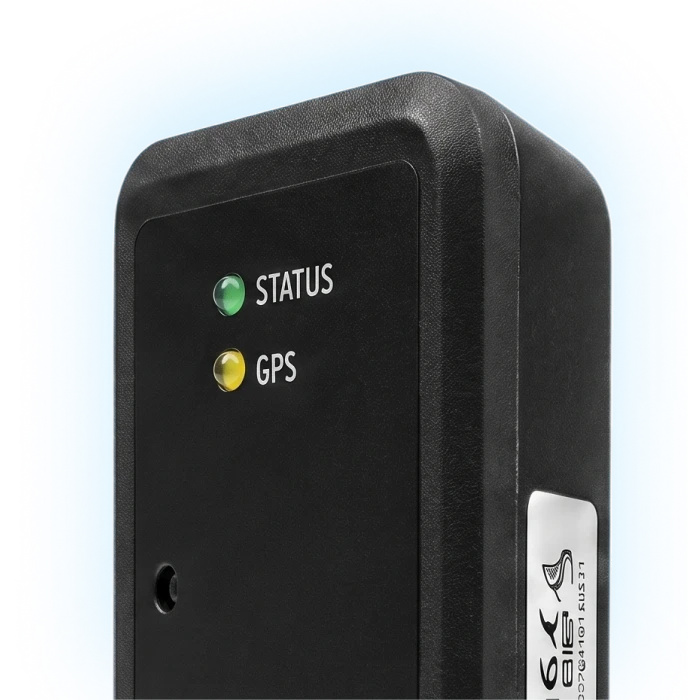

ARMOR Track™ is a next-generation LTE connected asset intelligence device with up to 1 year standby, wireless charging, BLE 5.2, and IP67 protection. It installs rapidly, operates globally, and feeds verified data directly to ARMOR Asset Central™.
Available for reseller and volume programs, contact our team
Global LTE
1 Year Standby
Wireless Charging
IP67 Waterproof
BLE 5.2
Rapid Install
Global LTE
1 Year Standby
Wireless Charging
IP67 Waterproof
BLE 5.2
Rapid Install

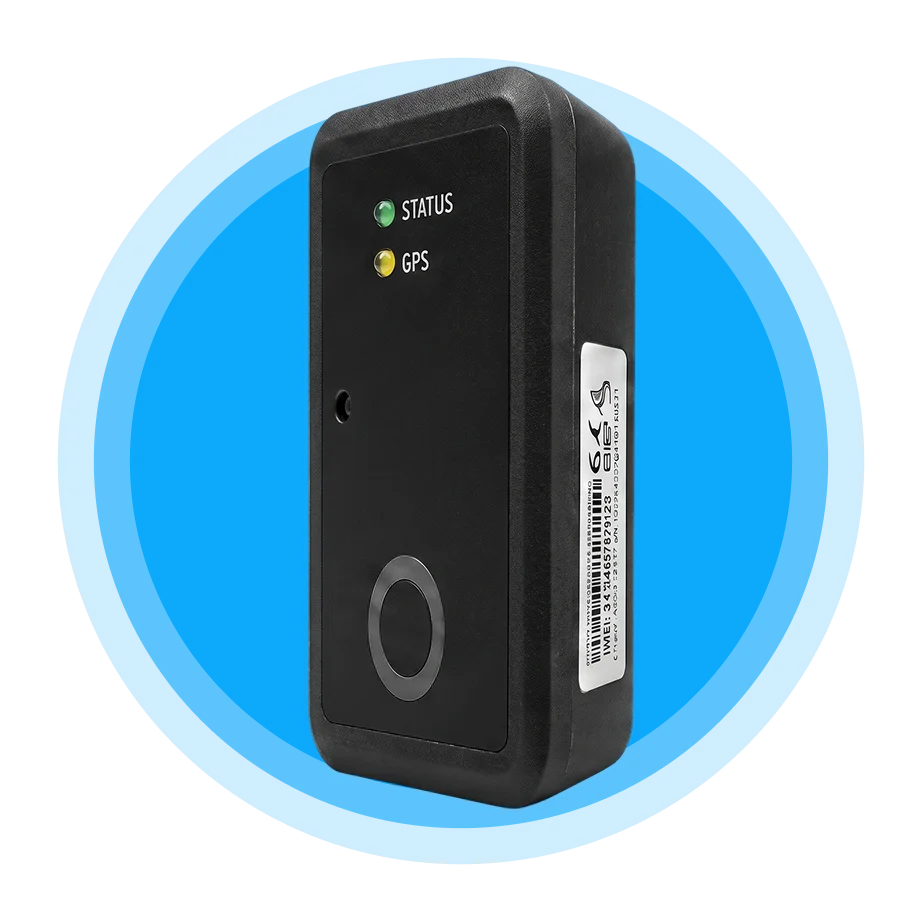

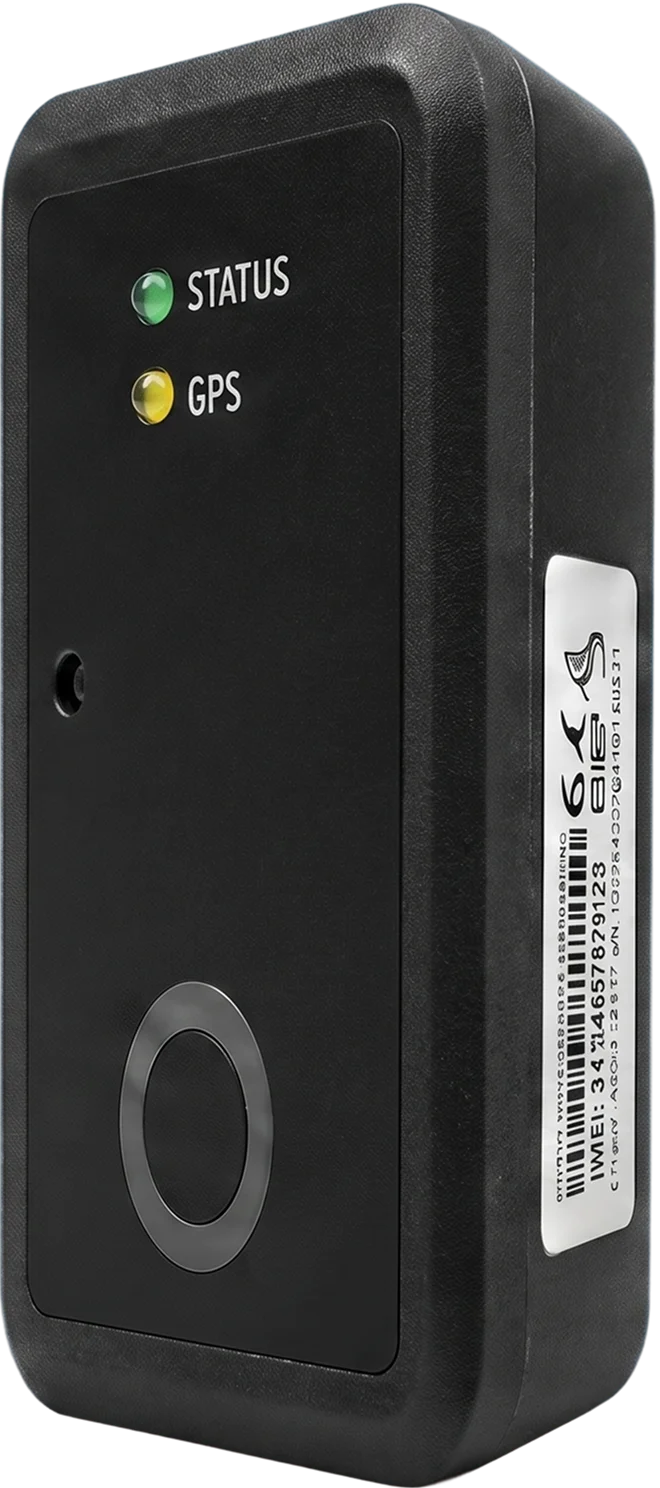

ARMOR Track™ by ARMOR™ Technologies Inc. installs quickly and secures verified intelligence directly to ARMOR Asset Central™. It adds Qi wireless charging, BLE 5.2, and temperature and light sensors in a rugged, waterproof enclosure. Built for demanding environments, it keeps critical conditions visible at all times. Teams gain the confidence to extend asset life and manage operations at scale.
LTE Cat M1 / NB2 with 2G fallback using a unique antenna solution. Operates across global networks without configuration changes.
Li-Polymer 2400 mAh battery with standby current under 10 microamps. One report per day delivers a full year of field operation.
5V / 1A Qi wireless charging built in. Recharge without removing the device from the asset or breaking the waterproof seal.
Fully sealed against dust and water. Operates from -20 to +60°C. Built for outdoor, industrial, and harsh field environments.
Built-in temperature sensor with 1°C accuracy and a light sensor for tamper detection and ambient condition awareness.
Multiple mounting alternatives using a unique clip-on design. Attaches securely to virtually any asset without permanent modification.
General
Dimensions
87 x 51 x 30 mm (3.43 x 2.01 x 1.18 in)
Magnetic case: 87 x 51 x 33.5 mm (3.43 x 2.01 x 1.32 in)
Weight
150g / 5.29 oz
Magnet-mounted: 170g / 6.0 oz
Battery
Li-Polymer 3.7V / 2400 mAh
Standby Time
Up to 1 year (1 report/day)
Standby Current
Under 10 microamps
Standby Conditions
LTE Cat M1 / NB-IoT, CSQ above 15, 25°C ambient, 1 report/day, no sensors active
Network and Connectivity
Network
LTE Cat M1 / NB2 with 2G fallback
GNSS
GPS, GLONASS, BeiDou, Galileo
Protocols
TCP, UDP, MQTT, CoAP
BLE
BLE 5.2 protocol
Hardware and Features
Charging Method
5V / 1A wireless (Qi)
Waterproof
IP67 compliant
Operating Temperature
-20°C to +60°C
Function Button
Power on / off and working status check
Sensors and Additional Features
Temperature Sensor
Supported. Accuracy: ±1°C
Light Sensor
Tamper detection and ambient light awareness
Internal Motor
Vibration feedback after successful function button operation
Magnetic Mounting
Optional case for metal surfaces
Compliance and Certifications
Certifications
EU RED EN 60310-1/2, Radio Equipment Directive (2014/53/EU)
Security
ARMOR™ internal penetration-testing verified
Supplier
ARMOR™ Technologies Inc., Decatur, Illinois, USA
Wireless Charger Notice
Use only approved Queclink-compatible wireless chargers. Using unapproved chargers may cause heat, battery failure, or burst. ARMOR™ Technologies Inc., its distributors, and affiliates bear no responsibility for damages resulting from use of unapproved third-party chargers.
Purpose-built hardware for every asset. ARMOR Track™ accessories and mounting options engineered for seamless integration with the ARMOR™ Asset Management platform.
SKU: AAA-6075

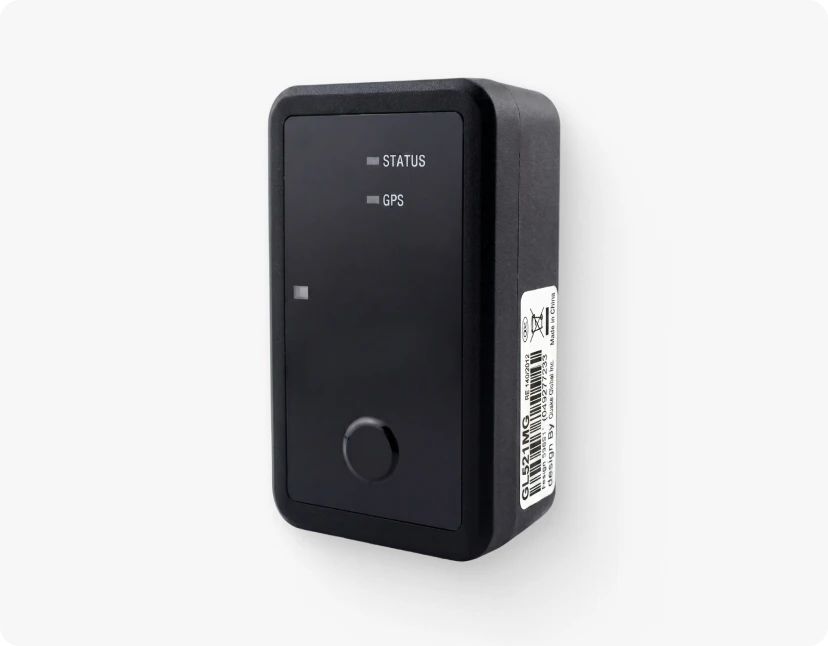

ARMOR Track™ – GL521MG – Single
SKU: AAA-6098

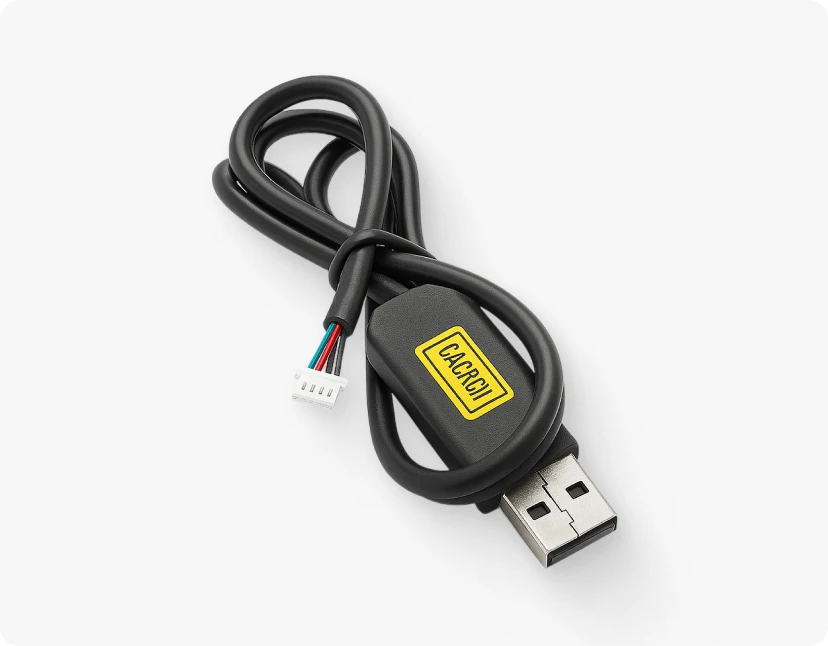

ARMOR Track™ Data Cable – Single

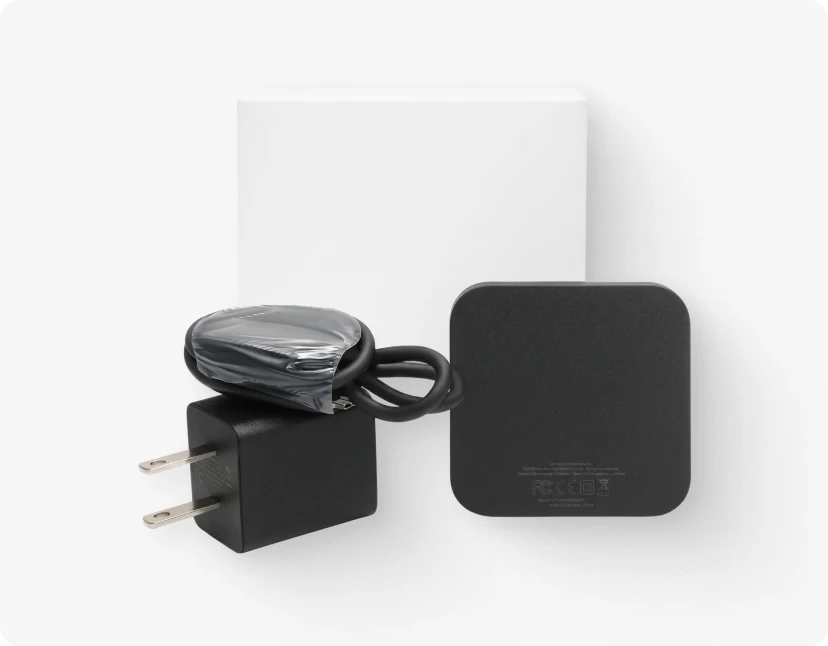

SKU: AAA-6102
ARMOR Track™ Wireless Charger Kit – Single

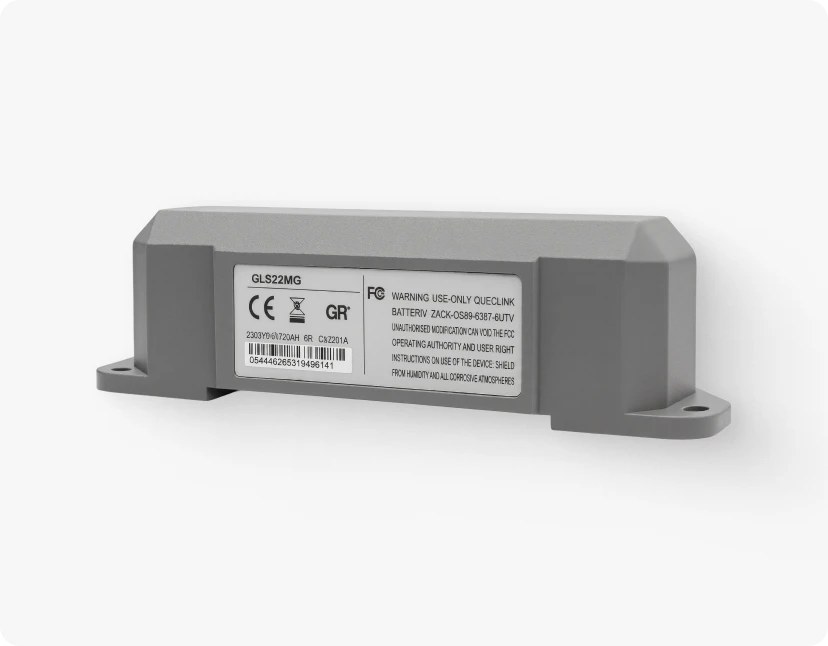

SKU: AAA-6074
GL522MG Large Tracker – Single

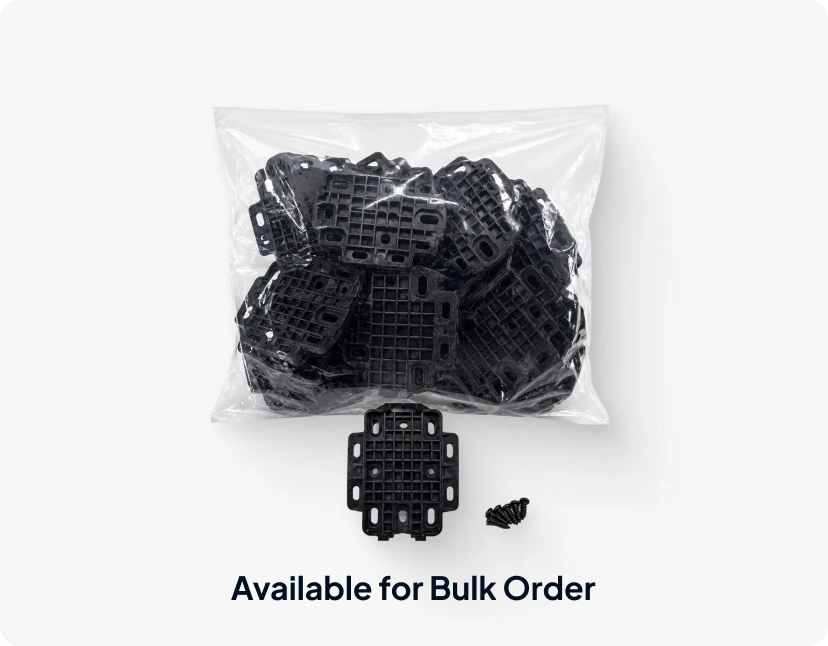

SKU: AAA-6147
ARMOR Track™ Magnetic Mounting Bracket – 20ct

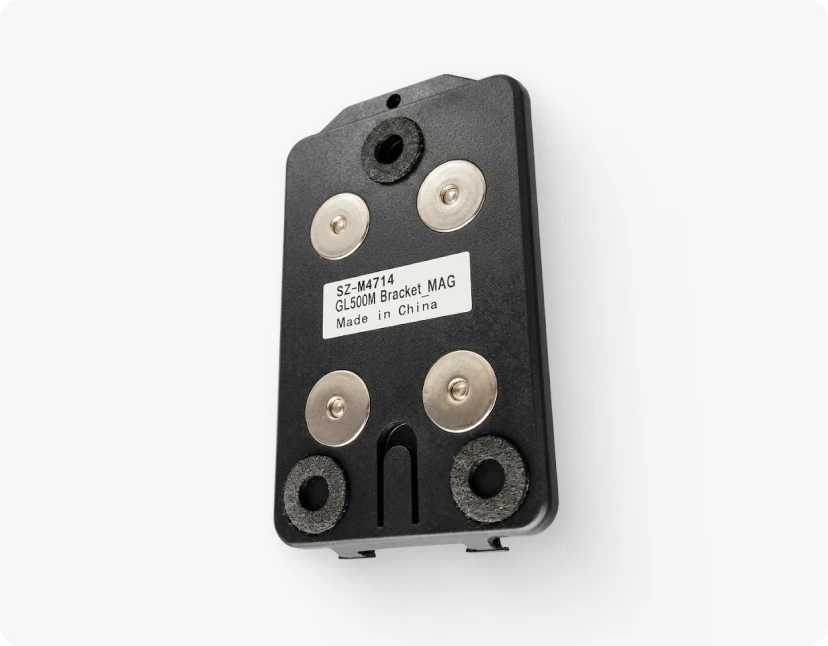

SKU: AAA-6103
ARMOR Track™ Magnetic Mounting Bracket – Single
SKU: AAA-6148

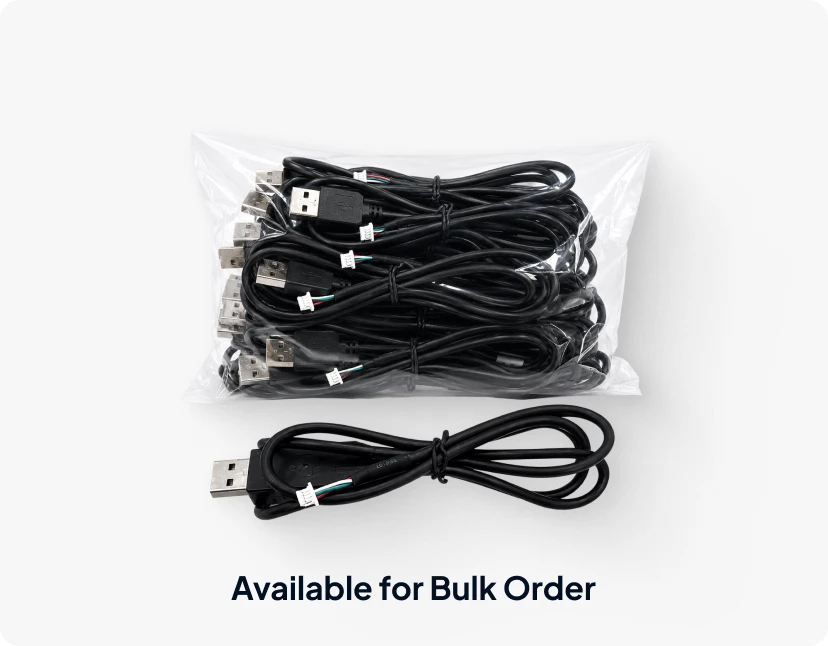

ARMOR Track™ Data Cable – 20ct

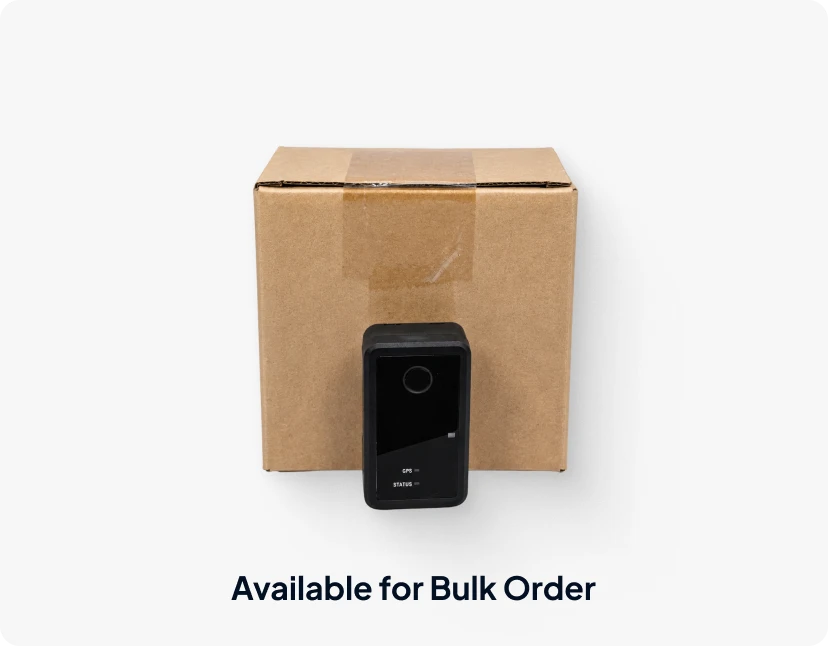

SKU: AAA-6146

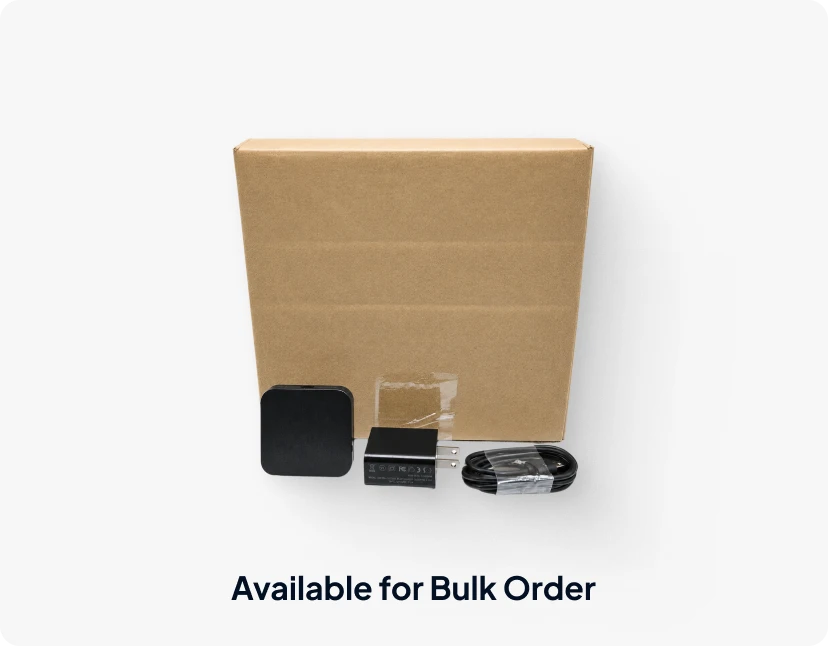

ARMOR Track™ (GL521MG) – 50ct
SKU: AAA-6149
ARMOR Track™ Wireless Charger Kit – 20ct

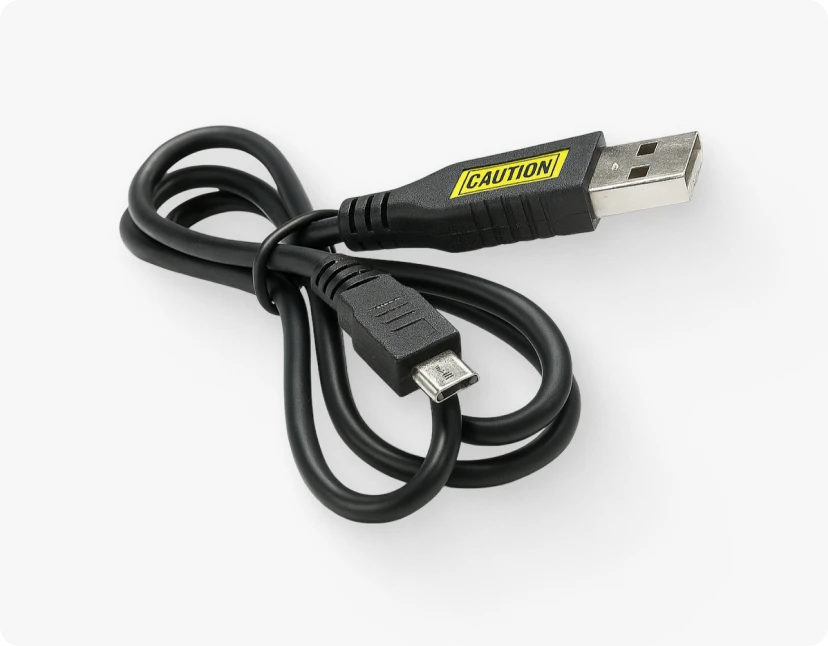

SKU: AAA-6099
GV50CNA Data Cable – Single
For reseller or volume programs, contact the ARMOR™ team directly for volume pricing and distributor agreements.
ARMOR Track™ attaches to virtually any asset and begins delivering verified LTE intelligence immediately, across a wide range of industries and field environments.
Temperature and location intelligence for perishable goods, pharmaceuticals, and sensitive cargo requiring continuous condition awareness.
Real-time asset location and condition awareness across large warehouse and distribution facilities.
LTE-connected intelligence for trailers, containers, and high-value cargo across long-haul and regional routes.
Continuous condition awareness for fixed assets that must always be accounted for. Tamper detection via internal light sensor.
Attach to high-value equipment on active job sites. Long standby keeps devices operational through extended field cycles.
Embed ARMOR Track™ intelligence into manufactured products for real-world field data from the moment of deployment.
See how ARMOR™ Track delivers activity and movement intelligence across your fleet.
That is where intelligence becomes decisions.
LTE field intelligence capture
Field interface and verification
System of record for alerts, ordering, & TCO.
Our team will help you configure the right ARMOR Track™ setup for your assets, from a single unit to a full fleet deployment.
