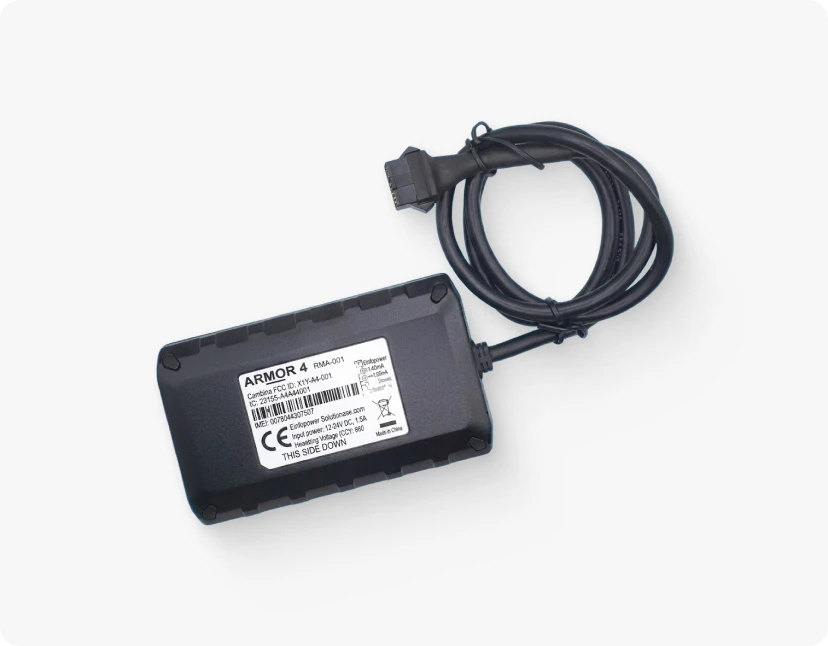

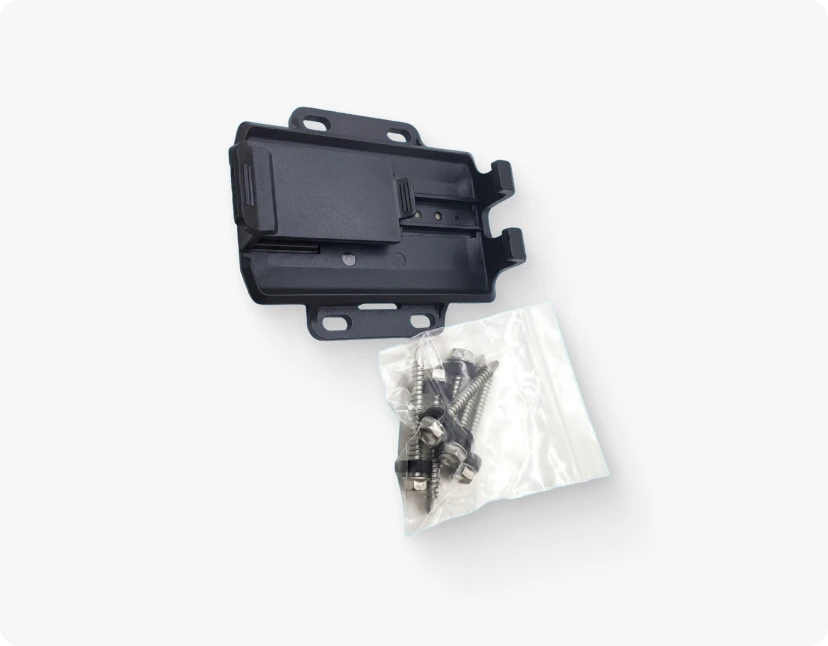

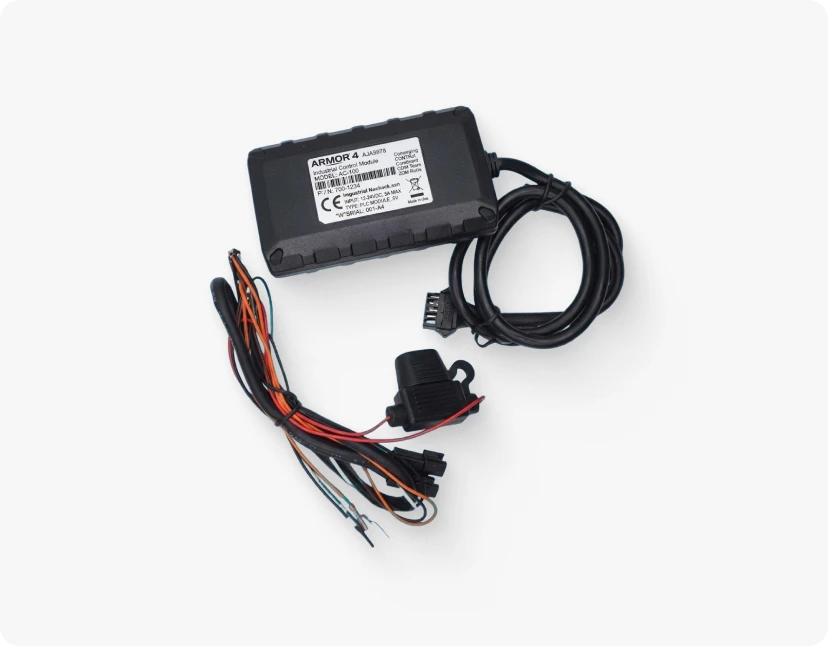

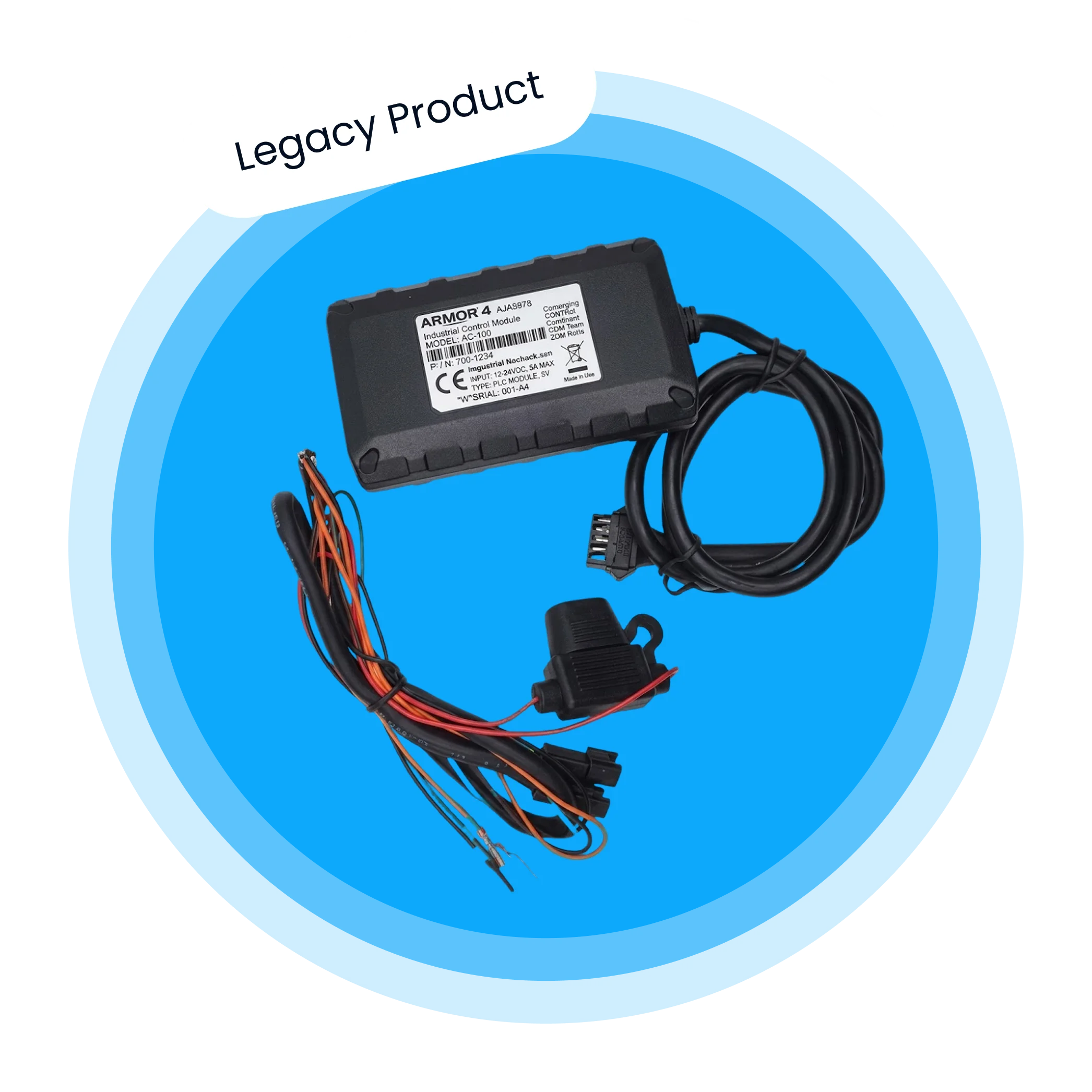

ARMOR 4

ARMOR™ 4 is a patented LTE Cat M1 with its newly release broad voltage feature that provides remote voltages, measurements, and alerts. LPWAN standards are utilized to effectively expand its coverage and makes it more convenient to deploy across a wide range of areas. Its waterproof design ensures long-lasting reliability in harsh environments. ARMOR™ 4 is ideal for managing mobile assets and can quickly be deployed with any DC powered equipment or even engine powered equipment with a DC starting battery. While ARMOR™ 4 can be deployed quickly in simple applications, you can also monitor or activate peripheral motors and devices. Reduce operational costs or increase productivity with verified usage data on any DC powered equipment. ARMOR™ 4 embodies over a decade of our experience and learning.

STANDARD FEATURES
UPGRADE FEATURES
STANDARD FEATURES

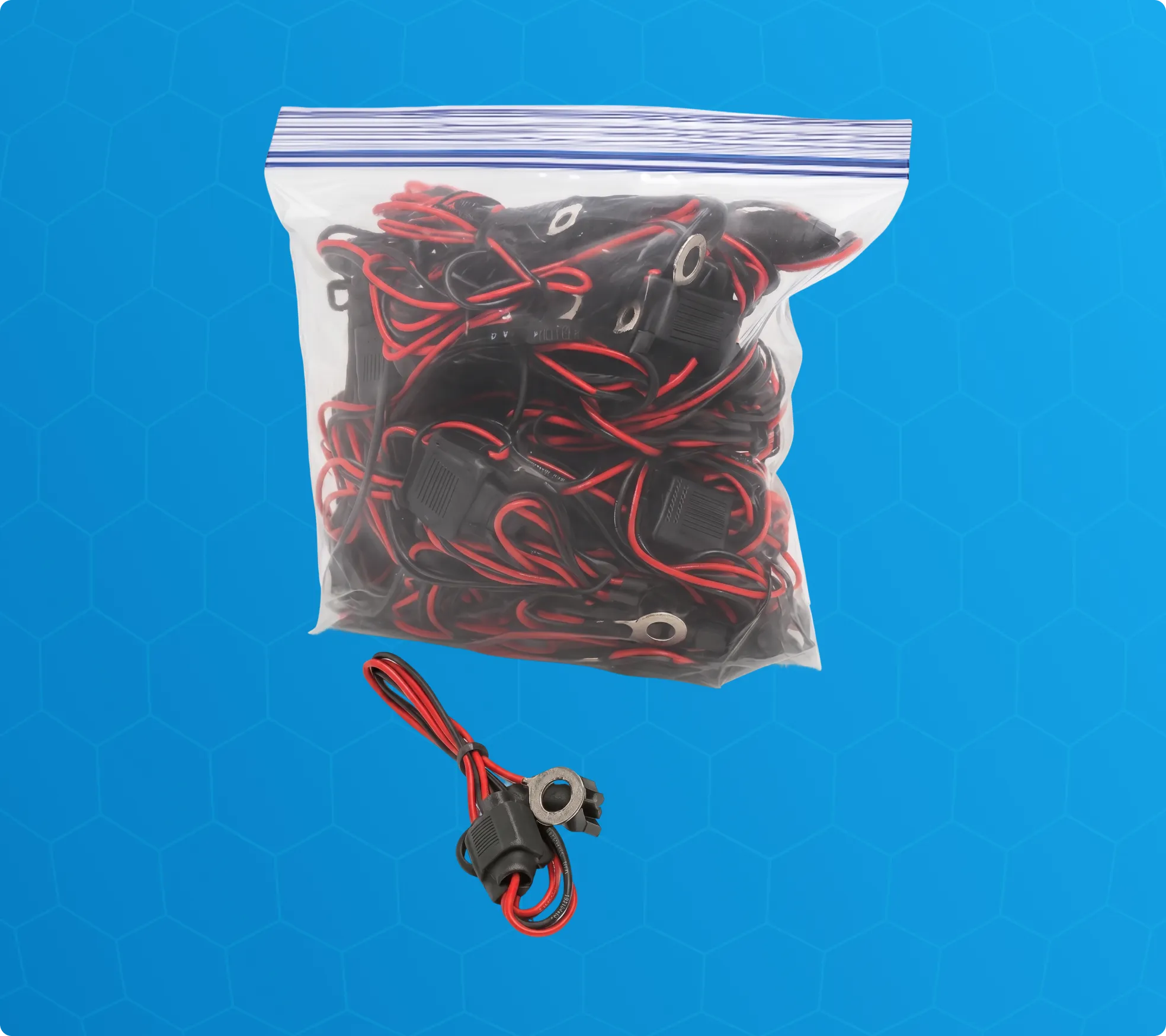

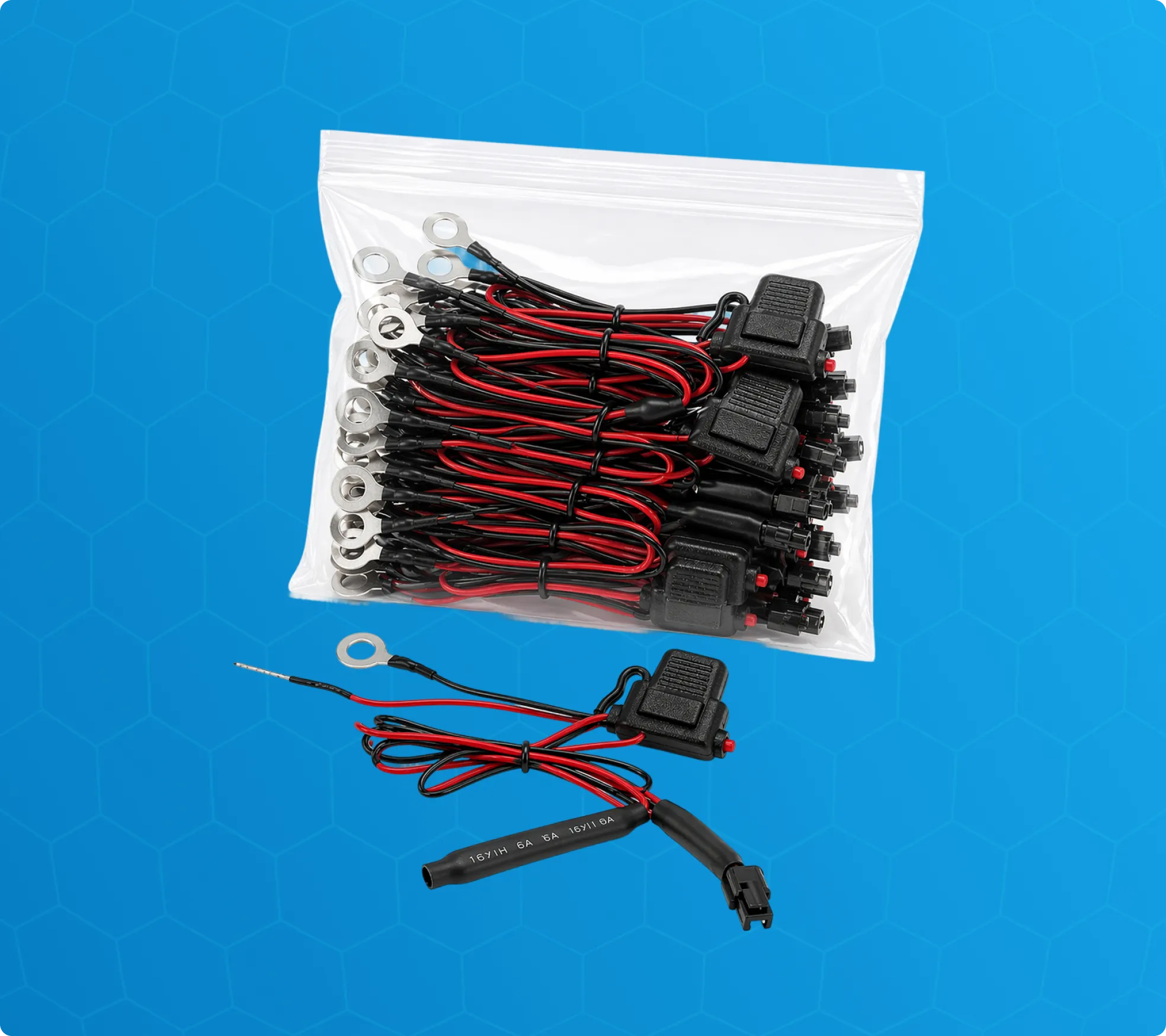

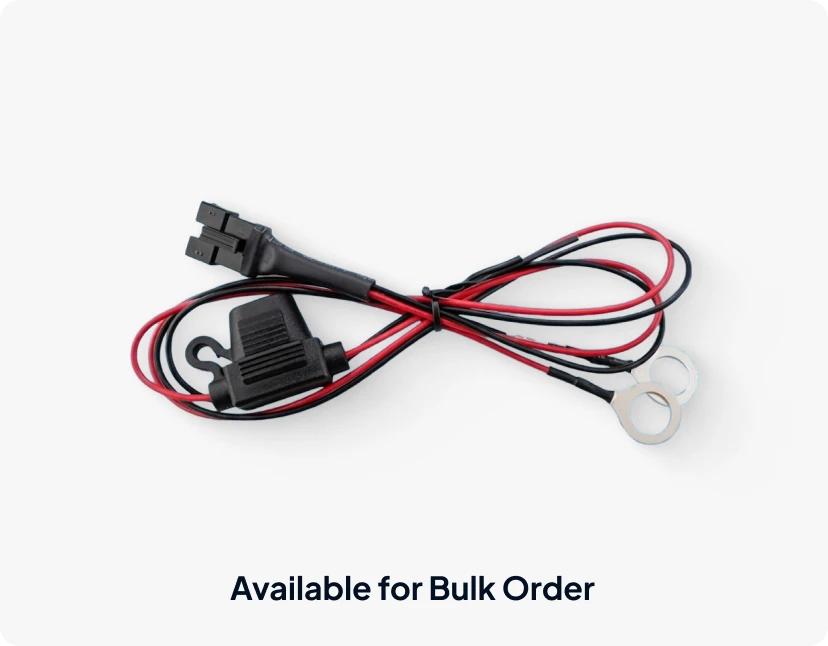

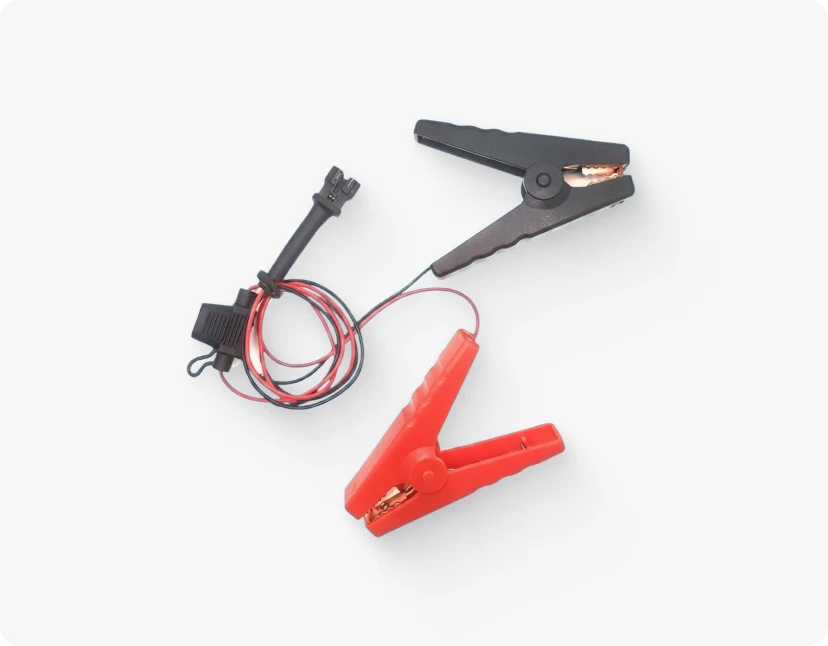

  • 2 wire install (positive/negative) up to 90v
  • Shows remote voltage
  • International multi-carrier SIM
  • IP67 weather proof
  • 190mA backup battery
  • Tracks GPS location
  • Tracks impact
  • Tracks Run time and charge time
  • Alerts for low and high battery voltages
  • Powers between 9v and 90v
  • Tamper setting if removed from the main power source
UPGRADE FEATURES

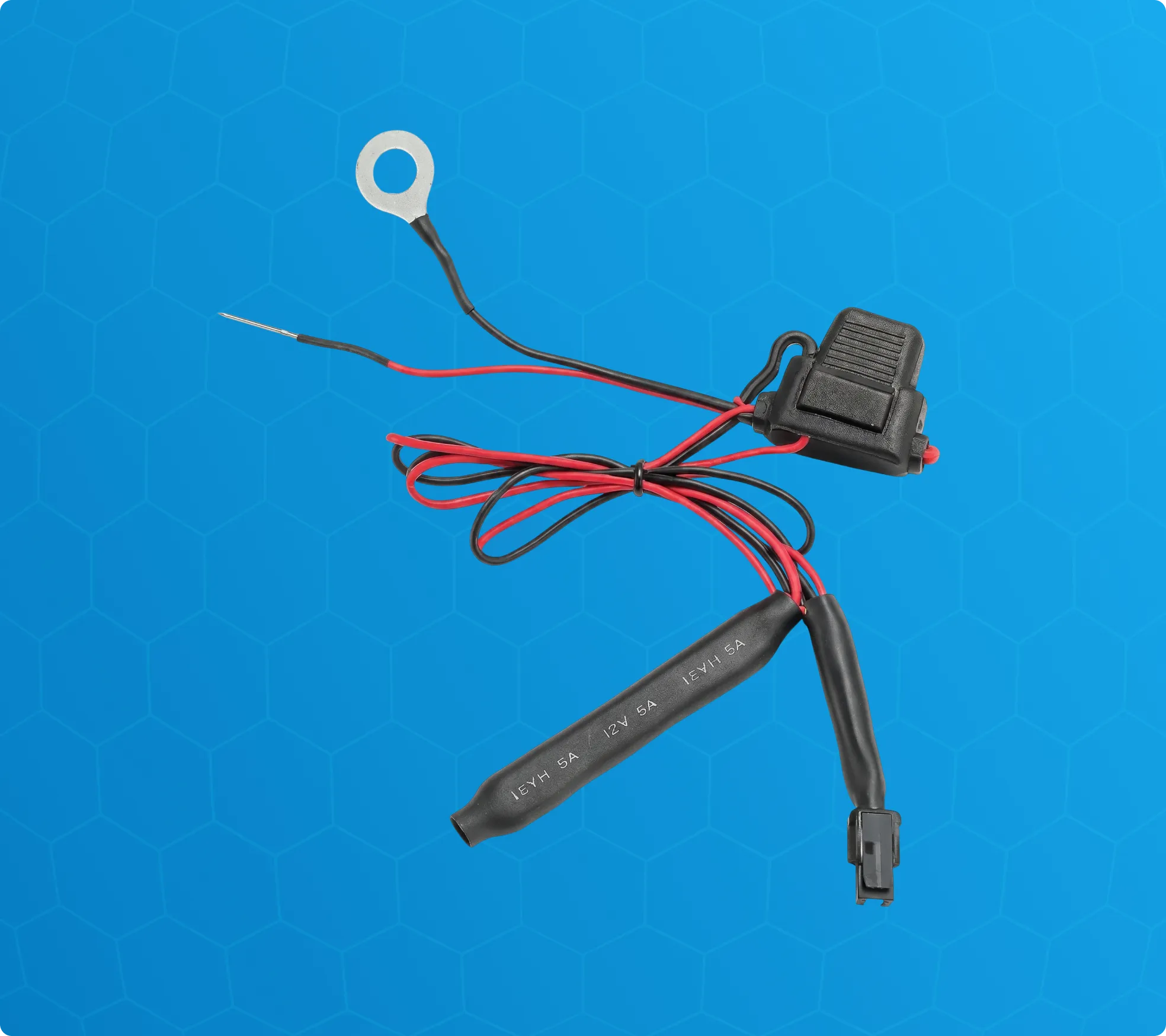

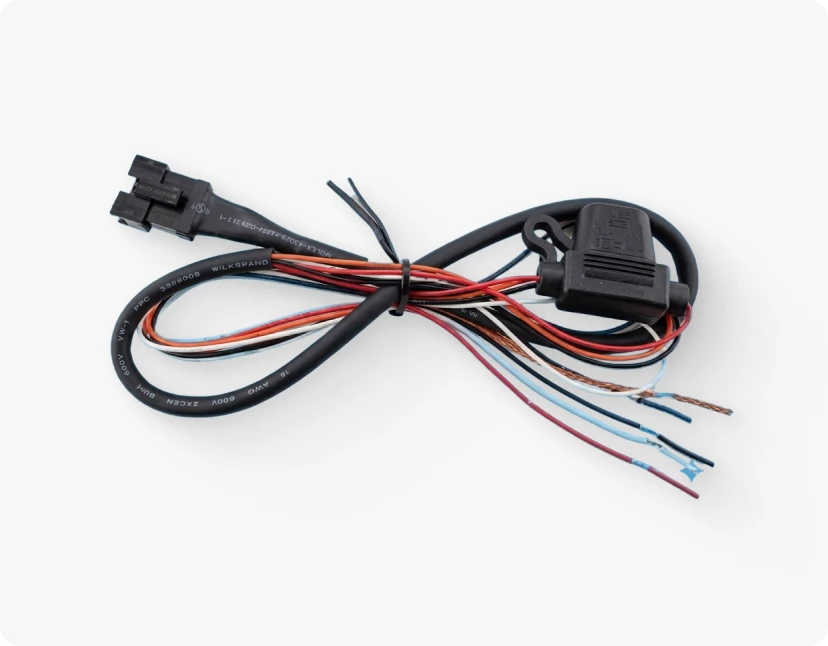

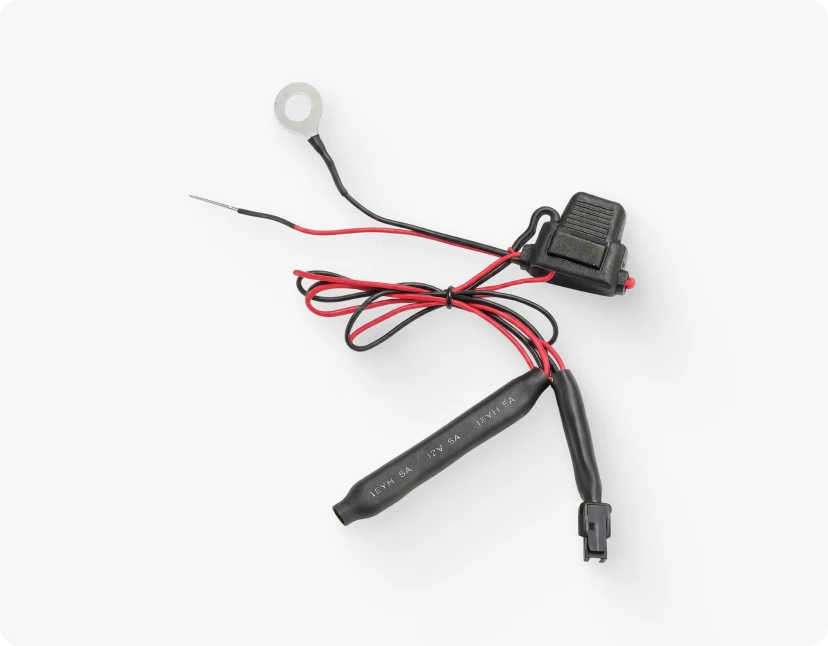

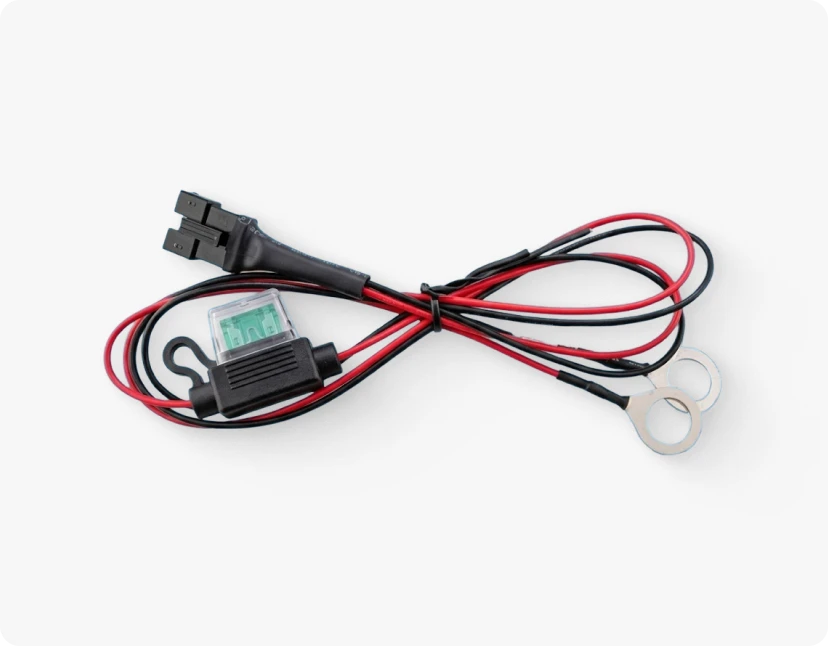

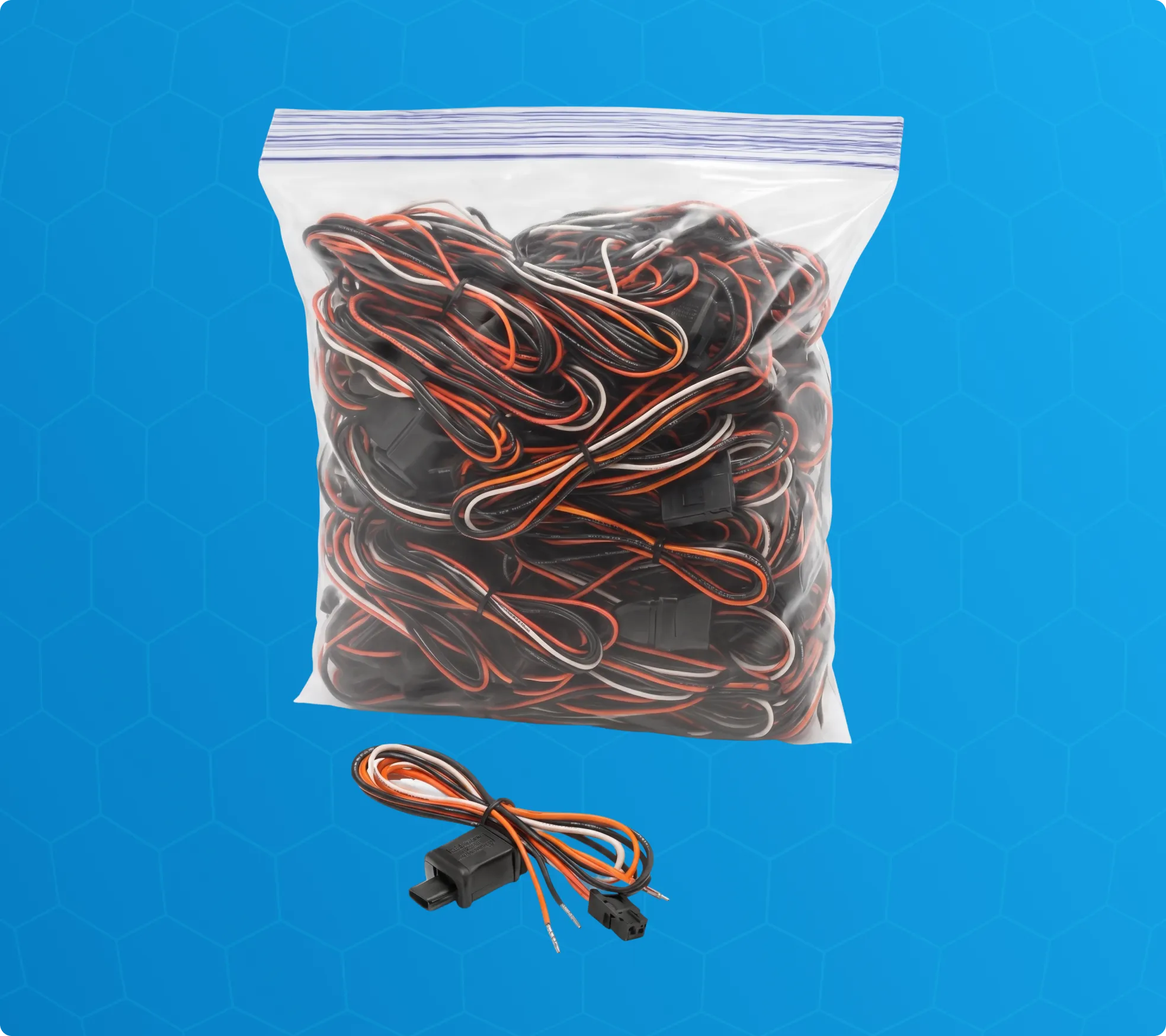

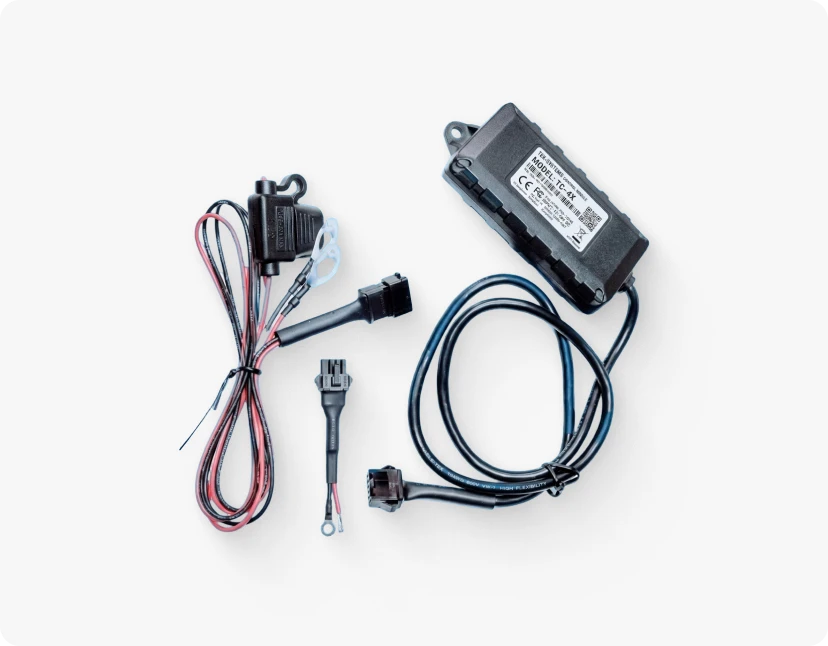

  • Measure and do more by buying our 5-wire accessory cable
  • 5 wires: 2 power; 2 independent motors; 1 digital out
  • Measure DC motors up to 90v by simply adding a buddy wire to the motor

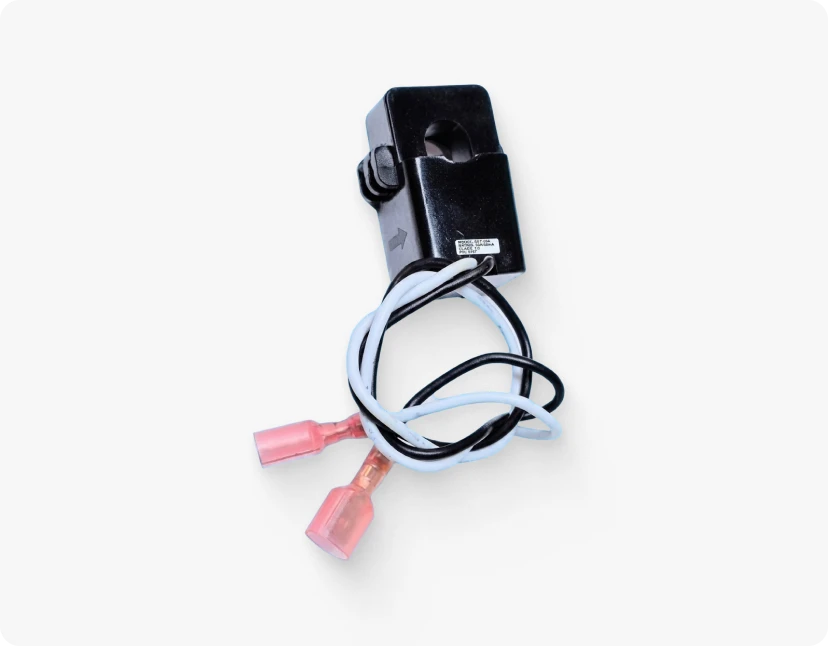

  • Measures AC motors with our AC/DC amp clamp

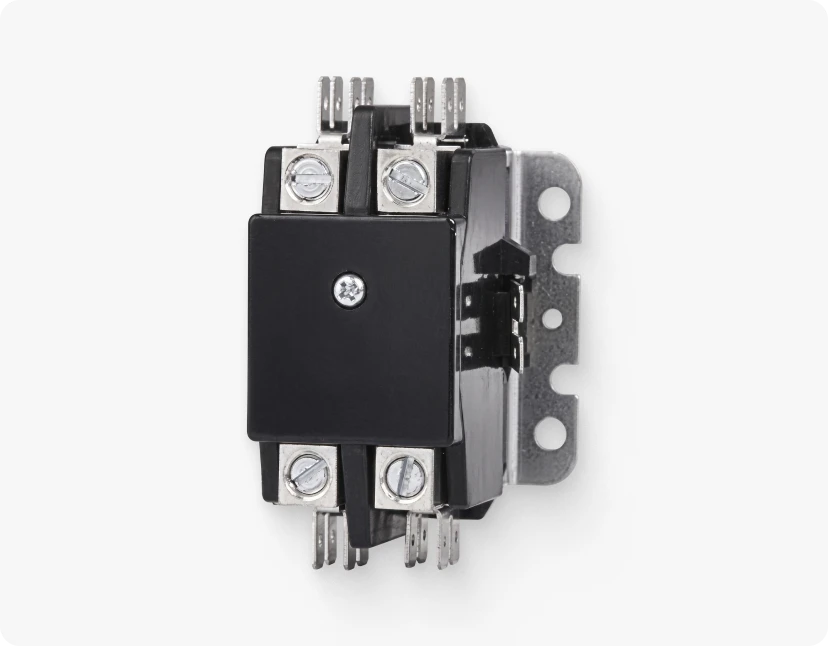

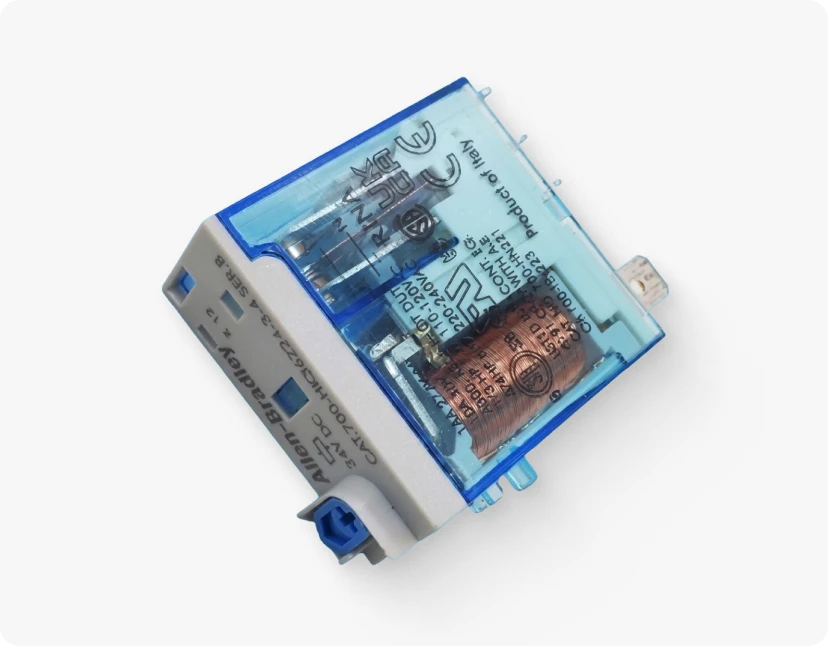

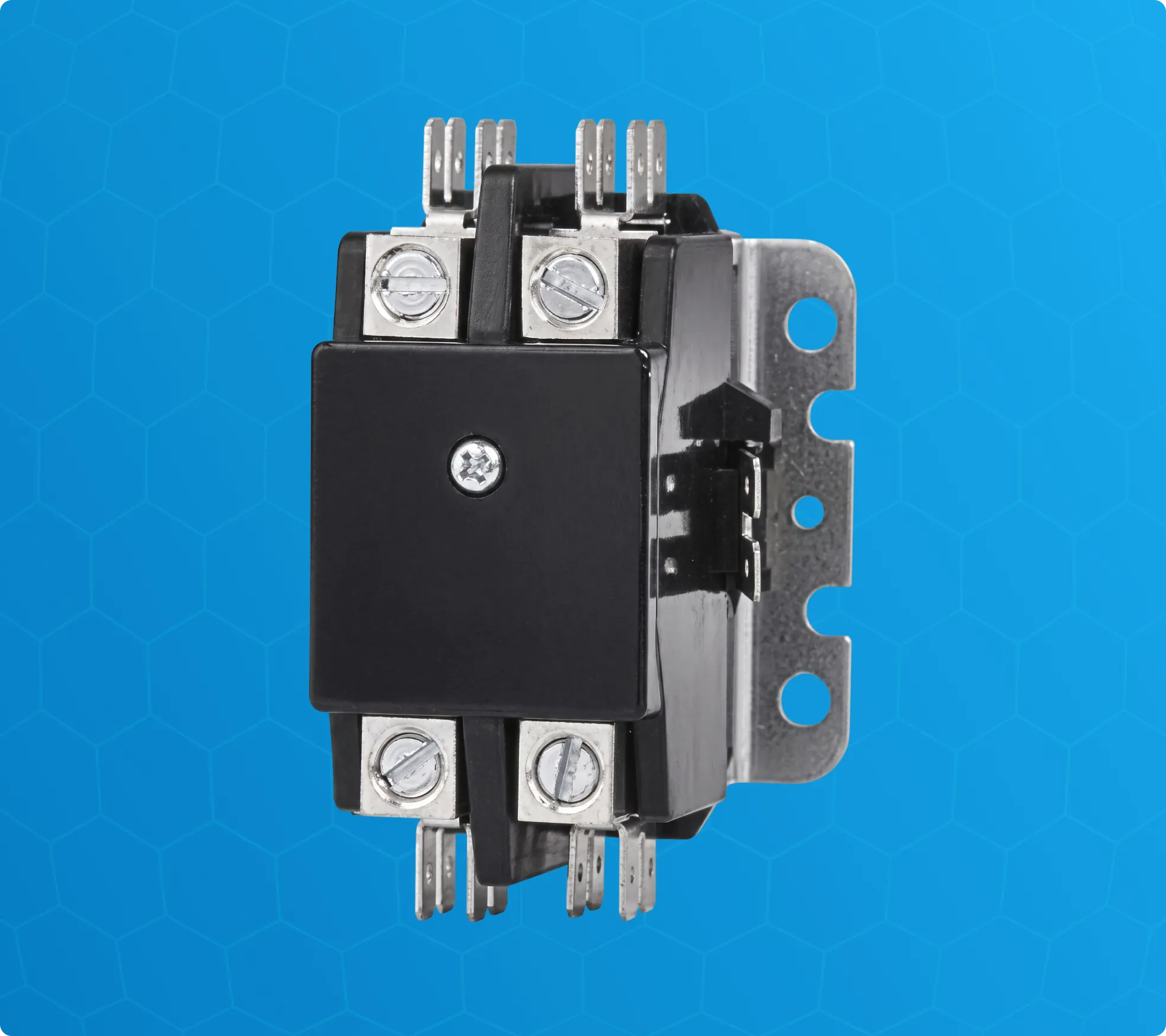

  • Digital out triggers or remotely powers contactor
  • Lock down your rental, Find-me feature with siren or strobe
  • Do it-yourself instructions
  • Alerts for low and high battery voltages
  • Powers between 9v and 90v
LTE Specifications

Operating Band

Cat M1:
LTE FDD:
B1 / B2 / B3 / B4 / B5 /B8 / B12 / B13 / B18 / B19 / B20 / B25 / B27 / B28 / B66 / B85
Cat NB2:
LTE FDD:
B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B28 / B66 / B71 / B85

Data Transmission

eMTC (DL) 348 Kbps
eMTC (UL) 1.08 Mbps
NB2 (DL) 121 Kbps
NB2 (UL) 150 Kbps
NB1 (DL) 74.1 Kbps
NB1 (UL) 101 Kbps

GSM Specifications

Frequency

850/900/1800/1900 MHz

Data Transmission

EDGE 296 Kbps (DL)/ 236.8 Kbps (UL)
GPRS 107 Kbps (DL) / 85.6 Kbps (UL)

Air Interface Protocol

Transmit Protocol

TCP, UDP, SMS

SW Features

Software features include Over-The-Air (OTA) firmware upgrades and configuration modifications.

General Specifications

Dimensions

84mm*50mm*16.6mm

Weight

95g (3.35oz)

Backup Battery

Li-Polymer, 190mAh

Operating Voltage

9V to 90V DC

Operating Temperature

-30°C`+ 80°C

Waterproof

IP67

Interface Description

Digital Input (PUMP IN)

1 positive trigger input for ignition detection and other application, ACC (ISO2) input Max Threshold is 90V

Digital Input (AMP_METER_DET)

1 positive trigger input, IN1 (ISO1) active HIGH input rabge us 0.5-70V

Digital Output

1 digital output, open drain, 150 mA max drive current

Cellular Antenna

Internal only

GNSS Antenna

Internal only

Micro USB Port

Micro USB port for upgrading, debugging and configuration

LED Indicators

CEL (green). GNSS (red)

GNSS Specifications

GNSS Type

Qualcomm Built-in GNSS Receiver

Sensitivity

Autonomous: -144 dBm
Hot Start: -155 dBm
Tracking: -155 dBm

Position Accuracy (CEP)

Autonomous: <2.5m

TTFF (Open Sky)

Cold start: 35s average
Hot start: 1s average

Power Consumption Characteristics

Part

Module

Accelerometer

MCU

Power Consumption

Sleep (RF off):
0.5 mA
Work (CSQ ¥25):0.9mA

Sleep: 5uA– ODR 100 Hz, in
Low-Power Mode
Work: 120uA– ODR range
12.5Hz-1600 Hz, 14-bit

Deepsleep+RTC:1uA
4.3mA@3V@24MHz

sleep

0.5mA

5uA

Deepsleep+RTC:1uA

work

0.9mA

120uA

4.3mA@3V@24MHz
