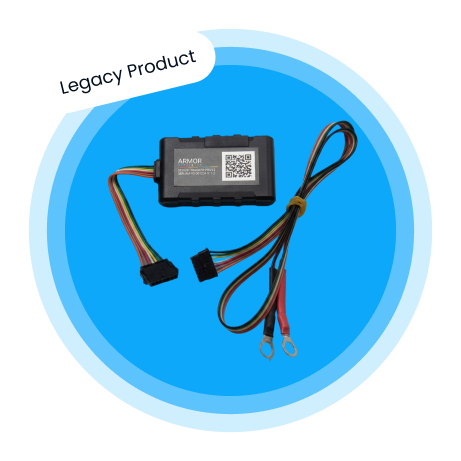

armor 3 product

Order # 777-6110
ARMOR 3
STANDARD BUNDLE

For reseller or enterprise programs, please click here

ARMOR 3

ARMOR 3 is an LTE Cat M1/NB2 It integrates the latest low-power wide area network standards and covers a broader area, making it more flexible to deploy. It is a compact, ultra-thin product allowing covert and easy installation. The product offers basic digital I/Os that can be used for ignition detection and vehicle control. An extra configurable I/O enables flexible applications. The ARMOR 3 supports AES-256 encryption to secure business-critical data, guard against unauthorized access and ensure data integrity.

  • Measures run time
  • Measures charge time
  • Tracks GPS location
  • Tracks impacts
  • 2 wire install (positive/negative) up to 32v
  • Powers between 9v and 32v
  • uses US SIM or can upgrade to Global SIM
  • 2 extra I/O enables flexible applications
  • Tamper setting if removed from the main power source
LTE Specifications

Operating Band

LTE Cat M1/NB2
Cat M1:
LTE-FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B27
/ B28 / B66 / B85
Cat NB2:(*Cat NB1 is available in Brazil)
LTE-FDD: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B28
/ B66 / B71 / B85

Data Transmission

eMTC (DL) 348 Kbps
eMTC (UL) 1.08 Mbps
NB2 (DL) 121 Kbps
NB2 (UL) 150 Kbps
NB1 (DL) 74.1 Kbps
NB1 (UL) 101 Kbps

EGPRS Specifications

Frequency

EGPRS 850 / 900 / 1800 / 1900 MHz

Data Transmission

EDGE 296 Kbps (DL) / 236.8 Kbps (UL)
GPRS 107 Kbps (DL) / 85.6 Kbps (UL)

GNSS Specifications

GNSS Type

u-blox All-in-One GNSS receiver

Sensitivity

Autonomous: -147 dBm
Hot start: -156 dBm
Reacquisition: -160 dBm
Tracking: -162 dBm

Position Accuracy (CEP)

Autonomous: < 2.5m

TTFF (Open Sky)

Cold start: 27s average
Warm start: 27s average
Hot start: 1s average

General Specifications

Dimensions

87mm x 55mm x 12.5mm
3.43in (L) x 2.17in (W) x 0.49in (H)

Weight

95g (3.35oz)

Backup Battery

Li-Polymer, 190 mAh

Operating Voltage

8V to 70V DC

Operating Temperature

-30°C +80°C
-40°C +80°C (for storage)

Buffer Messages

Up to 10,000 buffer messages

Interfaces

Digital Input

1 positive trigger input for ignition detection and other application, ACC (ISO2) input Max Threshold is 90V

Digital Input (AMP_METER_DET)

1 positive trigger input for ignition detection

Digital Output

1 digital output, open drain, 150 mA max drive current

Configurable Input/ Output

1 special I/O can be configured as a negative trigger digital input or an open drain output with 150 mA max drive current

GNSS Antenna

Internal only

Serial Port

1 TTL UART port for upgrading and debugging

Cellular Antenna

Internal only

GNSS Antenna

Internal only

LED Indicators

CEL, GNSS

Air Interface Protocol

Transmit Protocol

TCP, UDP, SMS

Scheduled Report

Report position and status based on preset time intervals, distance, mileage or a combination of these settings

Geo-fences

Geo-fence alarm, support up to 20 circular and 20 polygon geo-fence regions

Power On Report

Report when the device is powered on

Tow Alarm

Alarm for tow event in ignition-off state

Driving Behavior Monitoring

Aggressive driving behavior detection, e.g. harsh braking and acceleratio

Crash Detection

Accident data collection for reconstruction and analysis

Special Alarm

Special alarm based on digital inputs

Remote Control

OTA control of digital outputs

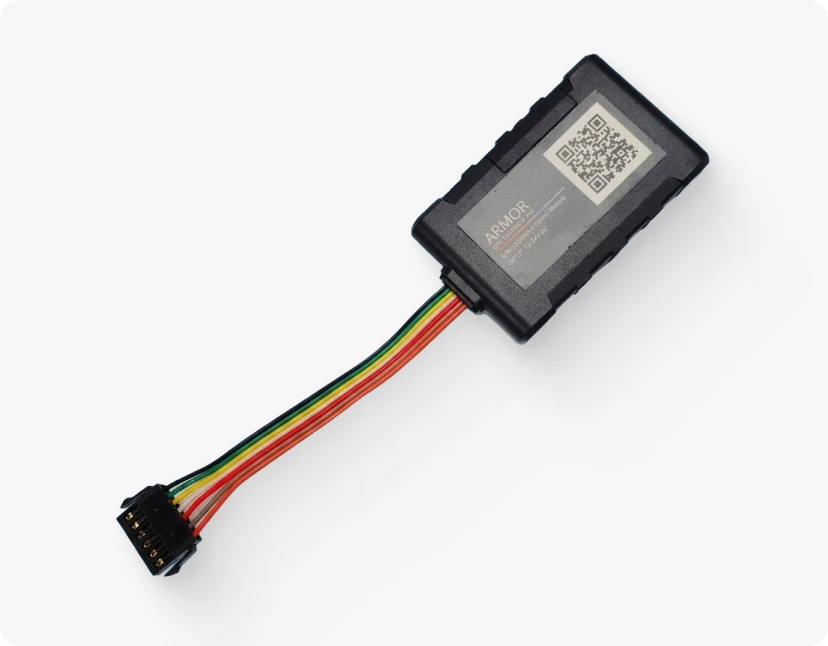

armor 3 base unit

Part# 777-6071

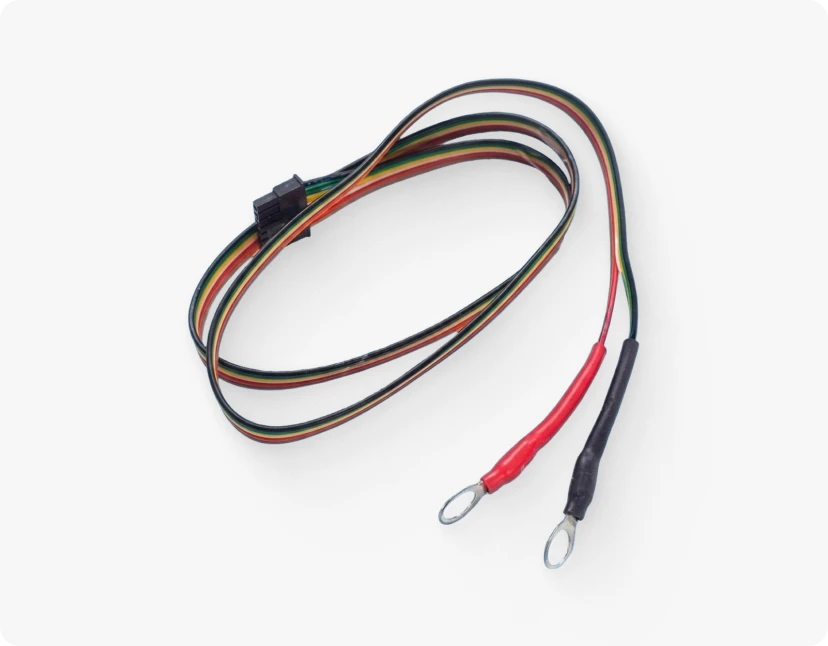

2 wire

Part# 777-6095

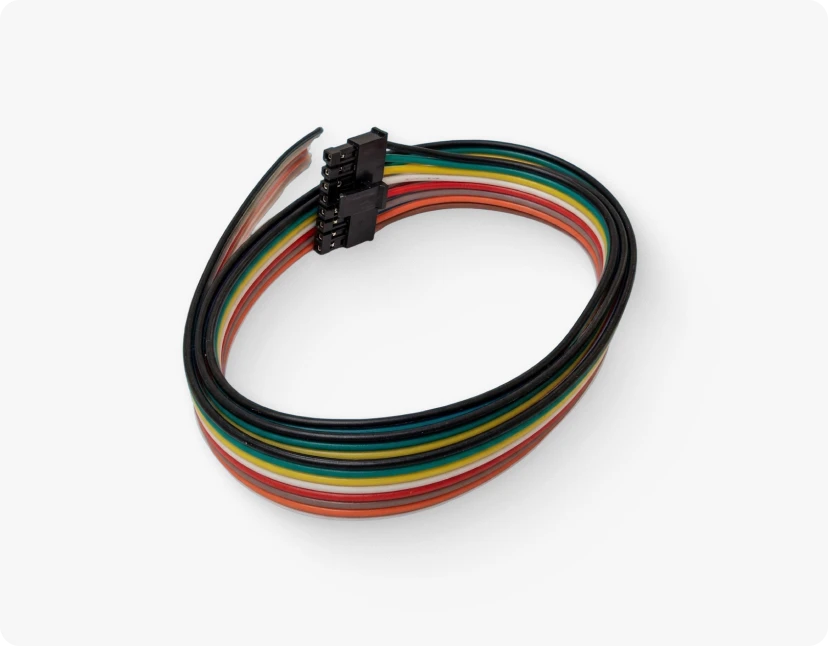

7 wire

Part# 777-5017
